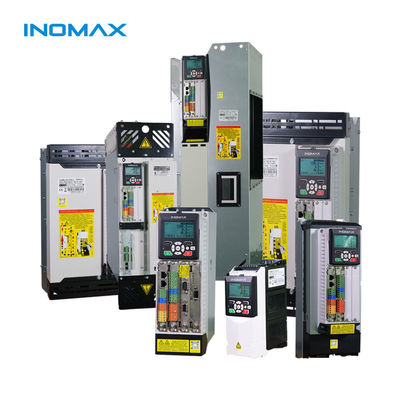

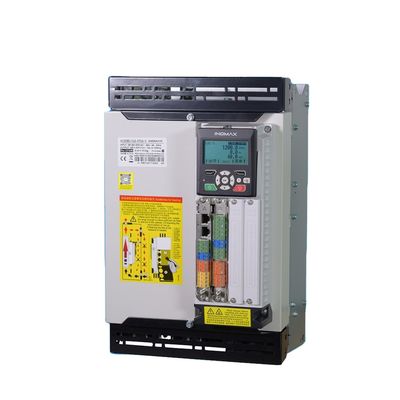

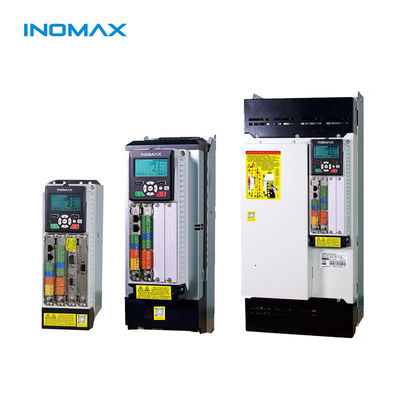

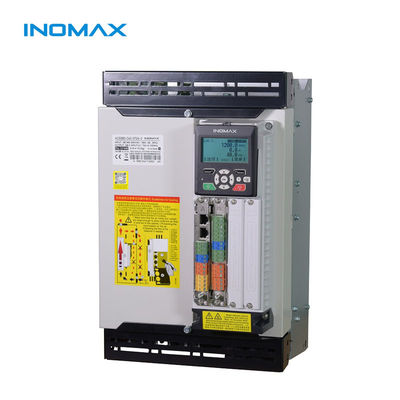

INOMAX Variable Frequency Drive VFD for Industrial Transmission with 2.2KW and 4KW Power 50HZ or 60HZ Output

MOQ:	5
Cena £:	$99

Detail Information

Opis produktu

Detail Information

Miejsce pochodzenia:

CHINY

Prąd wyjściowy:

Obciążenie

Częstotliwość wyjściowa:

50 Hz lub 60 Hz

Typ:

Konwertery DC/DC

Sieć:

NFC

Typ wyjściowy:

Pojedynczy

Rozmiar:

505*205*165 mm

Waga:

10 kg

Zakres mocy:

1,5 kW-250 kW

Napięcie mocy:

220 V, 230 V, 240 V, 380 V, 400 V, 440 V, 480 V, 500 V, 520 V, 600 V, 660 V, 690 V.

Tryb sterowania:

Kontrola DTC, kontrola wektora

Typ protokołu:

Modbus, Canopen, Profibus, Profinet, Ethercat, Ethernet

Reakcja momentu obrotowego:

Mniej niż 5 ms

Dokładność prędkości:

Mniej niż 0,5%

Zakres częstotliwości:

0 ~ 1000 Hz

Rozdzielczość częstotliwości:

0,01 Hz

Podkreślić:

2.2KW Variable Frequency Drive

4KW VFD

50HZ or 60HZ Frequency Inverter

Opis produktu

INOMAX Frequency Inverter Converter for Industrial Transmission (2.2KW-4KW)

ACS580 high-performance frequency inverter designed for demanding industrial applications requiring precise motor control.

Product Range	ACS580 frequency inverter ABB Analog
Product Type	High performance DTC drive
Applications	Complex, Heavy duty, Speed control, Tension control, Position control, Lifting control, DTC, STO, Direction torque control, Safe Torque Off
Power Range	1.5kW-250kW
Voltage	220V, 230V, 240V, 380V, 400V, 440V, 480V, 500V, 520V, 600V, 660V, 690V
Control Mode	DTC control, Vector control
Protocols	Modbus, CanOpen, Profibus, Profinet, Ethercat, Ethernet
Warranty	24 months

ACS580 Key Advantages

ACS580 DTC/Servo Drive (380V-480V, 1.5KW-250KW)

Direct torque control technology equivalent to ABB systems

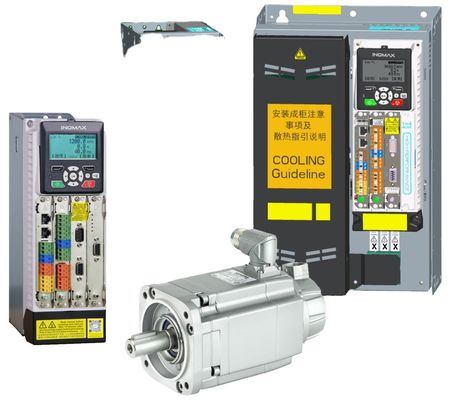

Universal compatibility with any sine wave AC motor including IM/PM/SynRM/Servo motors
Built-in standard EMC filters, DC reactor and braking units
Supports Modbus and Canopen communication protocols
2x torque at zero speed without sensor control, with smooth transition between drive and brake modes
Torque response time under 5ms for sensorless applications (0 to rated torque)

Advanced Performance Features

Speed loop dynamic response accuracy of 0.7%
Sensorless speed accuracy better than 0.5% (eliminating sensors in 95% of applications)
Advanced weak magnetic control technology for energy efficiency and reduced motor noise
Intelligent temperature-controlled fan for energy savings and extended drive life
Built-in logic programming function to reduce PLC requirements
Multiple application parameter macros for quick commissioning

Industrial Application Experience

Metallurgy Project: Henan Yaxin Iron and Steel Plant

Implemented converter steelmaking process control system requiring precise parameter detection and automatic control to maintain molten steel quality and production output.

System Requirements

360° continuous rotation with precise positioning for mechanical tilting converter
Speed regulation according to process requirements with equipment interlocking
Fault-tolerant operation to complete steelmaking cycle during partial failures
Shock load and torsional vibration absorption during start/stop cycles

Solution Implementation

Master/slave control configuration for four rigidly-connected 90KW motors with internal communication between drives to maintain absolute synchronization and eliminate operational instability.

20-Roll Reversible Mill Project

Regenerative drive application featuring 4 motors (1900kW main winding, 2x2000kW winding, 250kW unwinding) with 690VAC input and tension control accuracy under 1%.

Specialized Applications

Mine Hoist Systems

Selected by SIEMAG TECBERG group for shaft hoisting technology requiring low harmonics and high torque at low frequencies for safety-critical slow-speed operation.

Motor Test Bench Systems

Dual-motor configuration (MUT and DM) for comprehensive motor testing including durability, temperature rise, field weakening performance, and real-time parameter monitoring.

Test Bench Advantages

Significant energy savings through regenerative operation
Bidirectional loading capability for comprehensive testing
Wide speed range with rated load torque from zero to 5-6x field weakening
Millisecond-level torque response for simulated load applications
Multi-purpose functionality including power drag and generator testing

Marine Winch Control System

Implemented on Xiangyanghong scientific research ship's 10,000m main cable winch with strict harmonic requirements (<3%) to protect sensitive marine detection equipment.

Oil Field Applications

Proven solutions for top drive systems and drilling pump operations in demanding oil field environments.

Frequently Asked Questions

What is direct torque control?

Advanced motor control technology that provides precise torque and flux regulation without complex coordinate transformations.

Key benefits of direct torque control:

Fast torque and flux response to reference changes
High efficiency with minimized switching losses
No overshoot in step response
Simplified control without PI current controllers
Automatic compensation for DC voltage variations
Low audible noise due to random switching spectrum

Motor Compatibility

Compatible with three-phase AC induction motors. For best performance, use inverter-grade motors with appropriate voltage insulation (800V for 200V class, 1600V for 400V class).

Common Motor Failure Causes

Industry studies show 41% bearing-related, 37% stator-related, 10% rotor-related, and 12% other causes.

VFD Selection Criteria

Consider application requirements, motor specifications, environmental conditions, and desired control features when selecting the appropriate variable frequency drive.
